ECS Deployments with Gitmoxi GitOps
⚠️ IMPORTANT: Before proceeding, complete all steps in the Getting Started section to install Gitmoxi, create your private
gm-trialrepository, and add that repository to Gitmoxi.
Overview
This guide will walk you through testing Gitmoxi’s GitOps-based deployment for ECS by:
- Creating the infrastructure needed to deploy ECS sample services
- Creating ECS services and performing rolling and blue/green updates using Gitmoxi GitOps
- Cleaning up all test resources when finished
Infrastructure Resources
We’ve provided a sample Terraform file to create the required infrastructure for ECS test services. Your IAM role must have permissions to create the following resources in the us-west-2 region:
| Category | Resources | Purpose |
|---|---|---|
| Networking | • VPC • Public Subnets • Private Subnets • Security Groups | Network infrastructure and access control for Fargate tasks |
| ECS | • ECS Cluster • Task Execution Role | Required for creating and running ECS services and tasks |
| Load Balancing | • Application Load Balancer • Target Groups (2) • Listener Rules | Forwards traffic to target groups for blue/green testing |
| Monitoring | • CloudWatch Log Group | Container log management |
Note: The default region is
us-west-2. You can modify this in themain.tffile if needed.
Start by cloning your gm-trial private repository that you created in the Getting Started section. Below commands clone it in your HOME directory but you can clone anywhere.
cd ~
git clone git@github.com:$GITHUB_USER_NAME/gm-trial.git
Switch to the gm-trial directory.
cd ~/gm-trial
export WORKING_DIR=$PWD
Create infrastructure for ECS test services
If you are using AWS Profile then set the below environment variable otherwise Terraform will likely give error. You can usually find the AWS Profile in ~/.aws/config in the first line within the [] brackets.
cat ~/.aws/config
[profile <YOUR_AWS_PROFILE_IS_LIKELY_HERE>]
...
export AWS_PROFILE=<YOUR AWS PROFILE>
cd $WORKING_DIR/ecs/core-infra/terraform
terraform init
terraform plan
terraform apply --auto-approve
terraform output --json > terraform_output.json
Let the terraform apply and terraform output finish because this infrastructure is required to deploy ECS services.
Note: Keep the Terraform output JSON file name the same. This file is used to substitute parameterized attribute values in service and task definition files.
Create ECS service
Following the GitOps paradigm, we will create the ECS service deployment files and commit the changes to a repository and then trigger the deployment for that commit.
Start by copying the deployment artifacts provided in the ecs/rolling-update/sample folder.
cd $WORKING_DIR/ecs/rolling-update
cp sample/nginx_taskdef.json.sample nginx_taskdef.json
cp sample/nginx_svcdef.json.sample nginx_svcdef.json
cp sample/nginx_depdef.json.sample nginx_depdef.json
cp sample/nginx_input.json.sample nginx_input.json
cd $WORKING_DIR
Review the changes, you should see the above copied files and the terraform_output.json as new file.
git status
...
...
Untracked files:
(use "git add <file>..." to include in what will be committed)
ecs/core-infra/terraform/terraform_output.json
ecs/rolling-update/nginx_depdef.json
ecs/rolling-update/nginx_input.json
ecs/rolling-update/nginx_svcdef.json
ecs/rolling-update/nginx_taskdef.json
Add files and commit changes.
git add .
git commit -m "creating nginx svc with rolling update"
git push
Gitmoxi commit dryrun
Before deploying the change, let us do a dryrun to check what all files have changed and why they are relevant for Gitmoxi with respect to ECS or Lambda deployments. The dryrun command tells the latest_commit_hash, the previous_processed_commit_hash, the files that have changed, and relevance of those changes for ECS service or Lambda functions.
gmctl commit dryrun -r $GITMOXI_DEMO_REPO -b main
latest_commit_hash previous_processed_commit_hash file change relevance
---------------------------------------- -------------------------------- ------------------------------------- ----------------- ------------------
95f3ca6ea26aea02ff74938c0ee964fd5520a88d ecs/rolling-update/nginx_input.json added_or_modified ecs_relevant_files
95f3ca6ea26aea02ff74938c0ee964fd5520a88d ecs/rolling-update/nginx_svcdef.json added_or_modified ecs_relevant_files
95f3ca6ea26aea02ff74938c0ee964fd5520a88d ecs/rolling-update/nginx_taskdef.json added_or_modified ecs_relevant_files
Gitmoxi commit deploy
Now trigger the deployment based on above commit. The CLI command gmctl commit deploy will deploy the changes associated with the latest commit.
gmctl commit deploy -r $GITMOXI_DEMO_REPO -b main

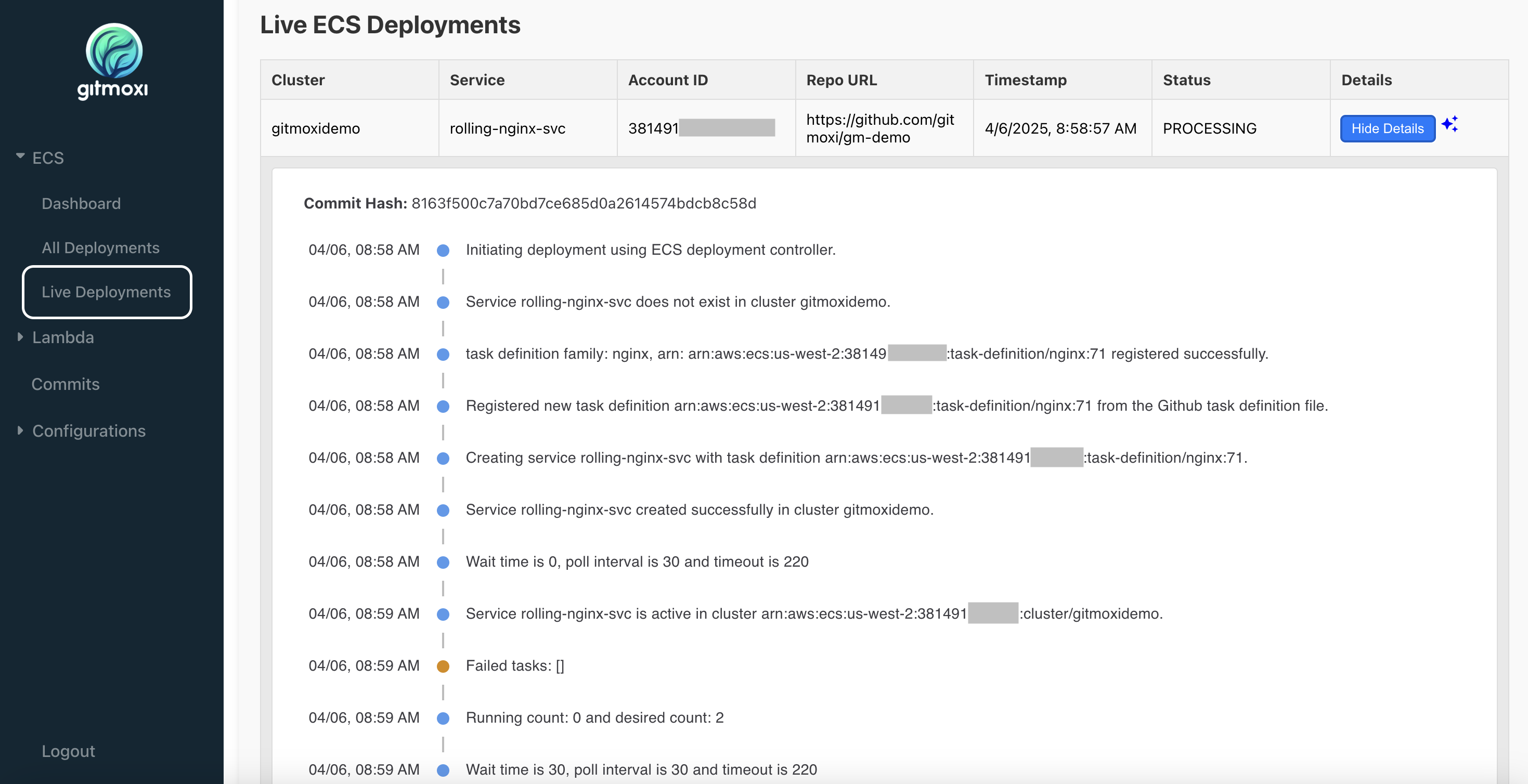

In Gitmoxi UI, you can click on the ECS -> Live Deployments section to see live timeline of the deployment and associated events. (If you did all steps in Getting Started section and are in the same terminal then the Gitmoxi UI can be printed using echo $GITMOXI_ENDPOINT_URL.)
You should see a new service rolling-nginx-svc created in your ECS cluster in AWS console as well. The rolling-nginx-svc has tasks attached to a public subnet and public IP is enabled. You can access the public IP to see the nginx welcome page.
Congrats! You have successfully created ECS service using Gitmoxi GitOps!
Perform rolling update
In previous step, Gitmoxi created the service since it didn’t exist. Now you will update the container image to httpd, commit the changes, and trigger Gitmoxi rolling update.
cd $WORKING_DIR/ecs/rolling-update
cp sample/nginx_input.json.sample.httpd nginx_input.json
git add .
git commit -m "changing image from nginx to httpd to test rolling update"
git push
And deploy the changes. Just the same command as above and it will deploy the latest changes and update the service!
gmctl commit deploy -r $GITMOXI_DEMO_REPO -b main
You can check the UI again in ECS -> Live Deployments section. Or, also use the CLI to get the list of deployments.
gmctl deployment ecs get -r $GITMOXI_DEMO_REPO -s rolling-nginx-svc
The flags, -v -A, provide more verbose details.
gmctl deployment ecs get -r $GITMOXI_DEMO_REPO -s rolling-nginx-svc -v -A
Access the public IP of the tasks and you should see the text It Works from httpd container instead of the nginx welcome message. This will confirm that the rolling deployment has successfully completed.
Cool, tell me more what is happening here?
The gmctl commit deploy command invokes the Gitmoxi workflow which gets all the file changes since the last known commit. Gitmoxi stores the commit information, including head commit hash, in the DynamoDB table. So Gitmoxi can check what is the last known commit and fetch all the changes since that commit. If there is no known last commit, example when the repository is added for first time, Gitmoxi will treat all the files as new additions.
Gitmoxi then looks for relevant file changes. In case of ECS, the relevant files are determined by the suffix _svcdef.json (service definition file), _taskdef.json (task definition file), and _input.json (input file with substitutions for attributes). If any relevant files are changed then Gitmoxi triggers the create/update workflow.
The infrastructure that you created using Terraform provided all the necessary input needed for the ECS service. The terraform_ouput.json file is referenced in nginx_input.json file and Gitmoxi replaces the attributes in service and task definition files using the Terraform output. This way you have a clean separation of concern between infrastructure and service/task definition files. You also don’t need to do brittle and hacky things in Terraform such as ignore desired_count, use a dummy container since task definition creation needs a container. Also in next section you will see that you can do seamless blue-grean deployment which works harmoniously with your Terraform generated infrastructure.
Delete the ECS rolling update test service
You can delete the rolling-nginx-svc service (it costs money even if it is running on Fargate Spot!). Please adjust the attributes if you have changed them in Terraform.
aws ecs delete-service --cluster gitmoxidemo --service rolling-nginx-svc --region us-west-2 --force
Create ECS service for blue/green test
We will create a load-balanced ECS service and test the blue/green deployment. Note that we have already created the ALB along with a listener and two target groups using Terraform in the create ECS infrastructure section. Now we will just use those target groups and create the new ECS service named bg-nginx-svc.
cd $WORKING_DIR/ecs/blue-green-update
cp sample/nginx_taskdef.json.sample nginx_taskdef.json
cp sample/nginx_svcdef.json.sample nginx_svcdef.json
cp sample/nginx_depdef.json.sample nginx_depdef.json
cp sample/nginx_input.json.sample nginx_input.json
cd $WORKING_DIR
git add .
git commit -m "creating the blue/green test service"
git push
Do a quick dryrun to check that the service files for blue/green are the relevant changes.
gmctl commit dryrun -r $GITMOXI_DEMO_REPO -b main
latest_commit_hash previous_processed_commit_hash file change relevance
---------------------------------------- ---------------------------------------- ---------------------------------------- ----------------- ------------------
ac668f7f3da9f09c07d0fb5c88a70a617263ebb7 484d16f968226c1b35f566c406b620c4e3c450cb ecs/blue-green-update/nginx_input.json added_or_modified ecs_relevant_files
ac668f7f3da9f09c07d0fb5c88a70a617263ebb7 484d16f968226c1b35f566c406b620c4e3c450cb ecs/blue-green-update/nginx_svcdef.json added_or_modified ecs_relevant_files
ac668f7f3da9f09c07d0fb5c88a70a617263ebb7 484d16f968226c1b35f566c406b620c4e3c450cb ecs/blue-green-update/nginx_taskdef.json added_or_modified ecs_relevant_files
Now we are ready to deploy this commit.
gmctl commit deploy -r $GITMOXI_DEMO_REPO -b main
In the AWS console, us-west-2 region, you should see ECS bg-nginx-svc in the gitmoxidemo cluster. The tasks for this service are running on private subnets. So you can only access them through the load balancer endpoint. You should see the nginx welcome message when you go to the load balancer endpoint.
cd $WORKING_DIR/ecs/core-infra/terraform
echo "http://$(terraform output -raw alb_endpoint)"
curl -s "$(jq -r '.alb_endpoint.value' terraform_output.json)"
Perform blue/green deployment
Once again we will change the task container image from nginx to httpd. This time we will do the blue/green deployment so there will be two sets of tasks running - the old with nginx container, and the new with http container. Then we will do the linear traffic shift, moving 20% of traffic every 10 seconds from old to new tasks. This shift is done by changing the target group weights on the ALB listener forwarding rule.
cd $WORKING_DIR/ecs/blue-green-update
cp sample/nginx_input.json.sample.httpd nginx_input.json
cd $WORKING_DIR
git add .
git commit -m "changing image from nginx to httpd to test blue/green deployment"
git push
And deploy the changes using our familiar gmctl commit deploy command.
gmctl commit deploy -r $GITMOXI_DEMO_REPO -b main
After a few seconds the tasks with new container image (httpd) will be running and registered to the ALB target group. Now ping the ALB endpoint multiple times using the curl command.
cd $WORKING_DIR
curl -s "$(jq -r '.alb_endpoint.value' ecs/core-infra/terraform/terraform_output.json)"
You should see the output flip between It Works message from the new httpd containers to the nginx welcome message from the old nginx containers. You can also open the AWS console, go to the ALB, and see that the target group weights are increasing linearly by 20%. Once the whole traffic is shifted the old tasks with nginx container will be deleted. The full traffic is now served by the new tasks with new container.
Gitmoxi ECS blue/green deployment documentation provides further details on features such as different traffic shifting patterns, multiple target group support, controls such as shift percent and shift interval, alarms to monitor and rollback.
Delete the ECS blue/green update test service
You can delete the bg-nginx-svc service using command below. Please adjust the attributes if you have changed them in Terraform.
aws ecs delete-service --cluster gitmoxidemo --service bg-nginx-svc --region us-west-2 --force
Quick word on GitOps
The entire audit trail of all the changes is available in GitHub. And you can conduct reviews and approvals in GitHub before allowing changes to trigger deployments. No more wondering what changed and when; you have the full audit log!
Cleanup
Let’s now delete all the AWS resources we created to perform the ECS testing.
cd $WORKING_DIR/ecs/core-infra/terraform
terraform destroy --auto-approve
cd $WORKING_DIR
